If Workflow Block
Allows a BooleanUses AND, OR, and NOT as operators between expressions to produce results based on whether the complete expression is true or false. Also called logical. decision to be made between fields, literal, system function, and global values. Depending on the outcome, the exit port can connect to a different block, creating a different path within the workflow. The exit ports in this block allow for paths based on true and false returns.
Exit Ports
| true | |
| false |

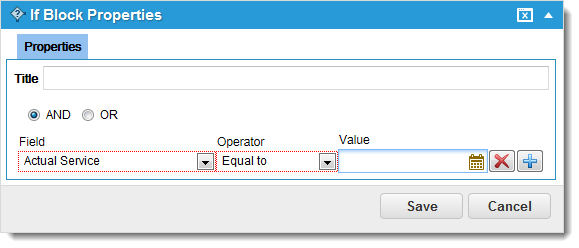

Properties
| Title | Enter a unique name for the object. |
| Description | Enter a summary description of the workflow or its starting point. |
| AND / OR | Select the first operator to apply. |
| Field | Select a field as an operand from the drop-down list |
| Operator | Select an additional operator to apply from the drop-down list. |
| Value | Select a value from the drop-down list |
Actions
- Click Add
to add an expression to the block. - Click Delete
to remove an expression from the list. - Click Save to commit your settings.
