* * * New or Improved for 2014.1 * * * Wait Workflow Block

Waits for a condition specified in the block to become true, or for a timer to expire. By default, exit ports for this block allow for separate workflow paths for these events.

Wait Workflow Block

The timeout behavior is as follows:

If value based timer (i.e. duration) is specified by values

days	==	null && hours == null && minutes == null,	then infinite timeout or never times out
days	==	-1 && hours == -1 && minutes == -1,	then infinite timeout or never times out
days	<=	0 && hours <= 0 && minutes <= 0,	then immediately times out and timeout exit is used
days	>	0 && hours > 0 && minutes > 0,	then combined value is set as the timeout and exit timeout is used when the time passes.

If field based timer

fieldvalue	==	null,	then infinite timeout or never times out
fieldvalue	<=	UtcNow,	then immediately times out and timeout exit used
fieldvalue	>	UtcNow,	then combined value is set as the timeout and exit timeout is used when the time passes

Exit Ports

Define additional exit ports under the Exits Configuration tab.

ok	Continue to the next block.
failed	General exit port for a failed integration action. A logical next step is to trigger a notification.

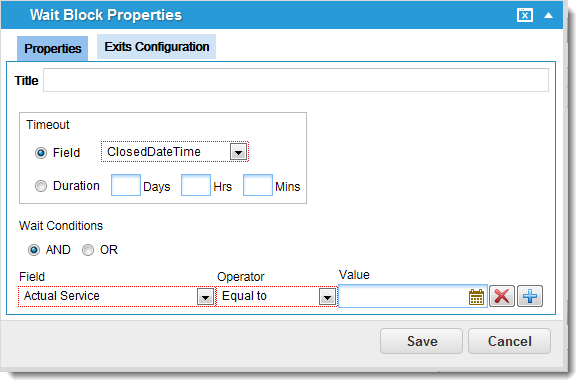

Properties

Title	Enter a unique name for the object.
Timeout	Field - The due date is generated relative to the field selected from the drop-down list. Duration - Click this radio button to define the due date according to the interval defined in the Days, Hrs (hours), and Mins (minutes) fields.
AND / OR	Select a child filter condition.
Field	Select an operand from the drop-down list.
Operator	Select an additional operator from the drop-down list.
Value	Add a value. Depending on the child object, this can be a drop-down list or calendar selection.

Click Add to add an expression to the block.
Click Delete to remove an expression from the list.
Click Save to commit your settings.
