Invoke Workflow Block
This block invokes another workflow created within this business object. The exit ports allow for paths contingent upon the workflow being started, completed, and failing.
Exit Ports
| started | |
| completed | |
| failed |
General exit port for a failed integration action. A logical next step is to trigger a notification. |

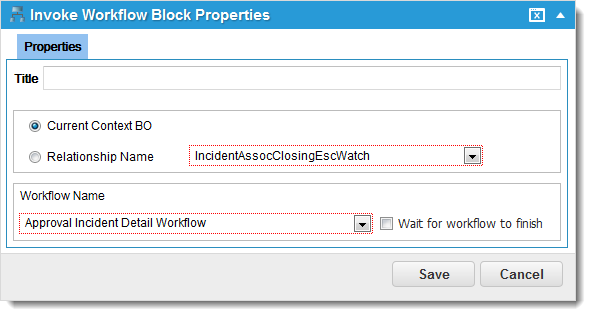

Properties
| Title | Enter a unique name for the object. |
| Current Context BO |
Select if only workflows created for this business object are available in the workflow drop-down list. |
| Relationship Name | Select if workflows defined for the child object in a relationship are available in the drop-down list. |
| Workflow Name | Choose a workflow to invoke from the drop-down list. |
| Wait for workflow to finish | Check to wait for the workflow to complete before exiting the block. |
Actions
- Click Save to commit your settings.
