Field Mapping

The asset identifiers and their mapped field are stored in the Asset Data Mapping form. This form is only available to administrators by default.

The Asset Data Mapping workspace controls how incoming asset data gets processed by the asset processor and to which business object this data is mapped.

When specifying link to related object as part of data import, keep in mind:

Data import can only be linked when using link fields such as OrgUnitLink or ManagerLink. Only a one-to-one link is supported.
For CSV files, the data should be display name of a business object. For example, for OrganizationUnit, use the name of the organization. For employee, use the display name of the employee (e.g. Marcia S Hendric) rather than the login ID (MHendric).

Log into the Service Desk Console as an administrator, then open the Asset Data Mapping workspace. A list of business objects defined for the configuration item appears.

Double-click the configuration item business object to which you want to map the SCCM field, for example, CI#Workstation. The asset details appear.

Select the Field Mappings tab. The list of asset identity or property appears on the SCCM configuration Field Mapping page and the corresponding field name on the asset data mapping record.

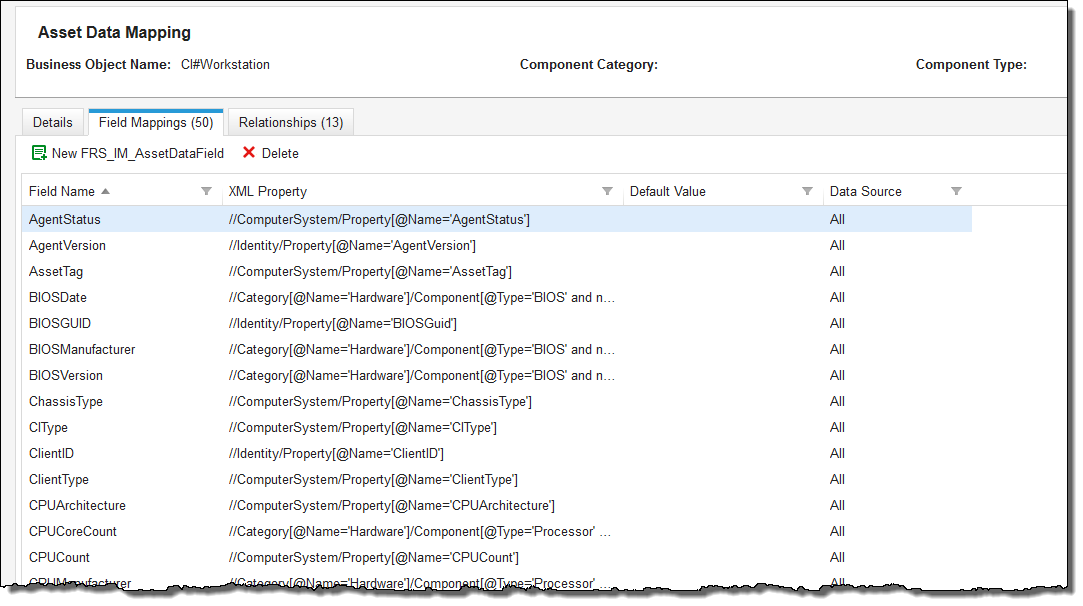

Asset Data Mapping Example

When mapping linked fields, use the link field name and not the display name.

The following shows mapping a linked field using the field name:

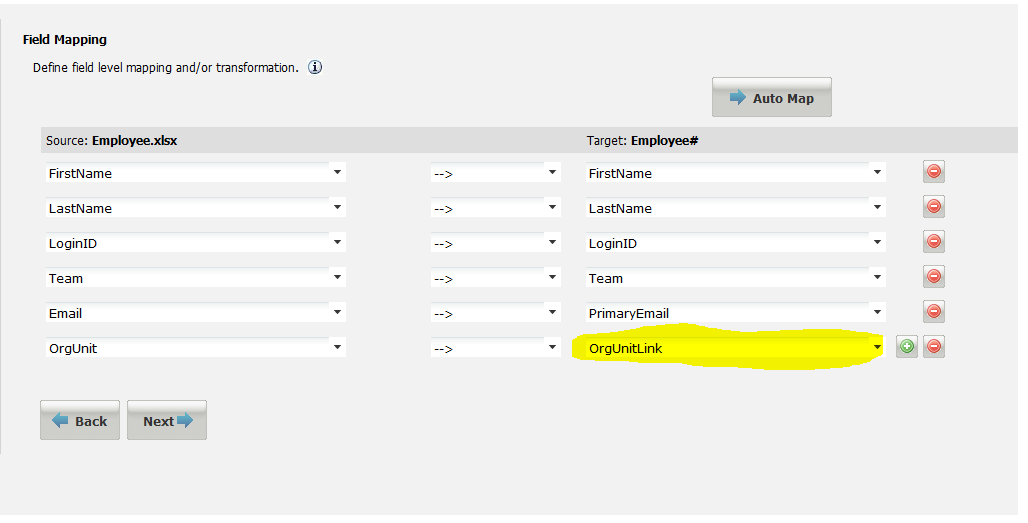

Field Mapping Example - Linked Field

About Transformation Functions

The following table lists the transformation functions.

Function Name	Category	Description	Input	Output
-->	None	Returns the source value (does nothing).
Abs	Math	The absolute value of input value.	Double	Double
AssetIdentifier	Special	Creates a unique identifier from the SCCM machine ID and the instance key.	SCCM machineID SCCM InstanceKey
Avg	Math	The arithmetic mean or average of all the input values.	Double	Double
Cbrt	Math	The cube root of the input value.	Double	Double
Ceiling	Math	Smallest integer value less, greater than, or equal to the given value.	Double	Double
Century	DateTime	Returns the century part of the input date time value.	DateTime	Double
CIType	Special	Returns CI types from the SCCM mappings and role. See example below.	SCCM Mapping and Role
Concat	String	Concatenates string values together.	String Array	String
ConvertToLocal	DateTime	Converts a DateTime value to a local DateTime value.	DateTime	DateTime
ConvertToUTC	DateTime	Converts a DateTime value to a UTC DateTime value.	DateTime	DateTime
DateTimeNow	DateTime	Current date and time in yyyy-MM-ddThh:mm:ss format.	None	String
DateTimeUTCNow	DateTime	Current UTC date and time in yyyy-MM-ddThh:mm:ss format.	None	String
DayOfMonth	DateTime	Returns the day of the month of the input DateTime value.	DateTime	Double
DayOfWeekNo	DateTime	Returns the day number of the week of the input DateTime value. 0 - Sunday 1 - Monday 2 - Tuesday 3 - Wednesday 4 - Thursday 5 - Friday 6 - Saturday	DateTime	Double
DayOfWeekStr	DateTime	Returns the day string of the week of the input DateTime value. Sunday Monday Tuesday Wednesday Thursday Friday Saturday	DateTime	String
DayOfYear		Returns the day of the year of the input DateTime value.	DateTime	Double
Diff	Math	Subtracts all the values from the first value.	Double Array	Double
Div	Math	Divides the first value by the remainder of the values.	Double Array	Double
Floor	Math	Largest integer value less, greater than, or equal to the given value.	Double	Double
Hour	DateTime	Returns the hour part of the input DateTime value.	DateTime	Double
IsoWeek	DateTime	Returns the ISO week number of the input DateTime value.	DateTime	Double
Leap
Length	String	The length of the string.	String	Double
Max
Min
Minute	DateTime	Returns the minute part of the DateTime value.	DateTime	Double
Mod	Math	Remainder after dividing first value by the second value.	Double, Double	Double
Month	DateTime	Returns the month part of the input DateTime value.	DateTime	Double
Pow	Math	The number raised to the power.	Double	Double
Product	Math	Product of all values.	Double Array	Double
Quarter	DateTime	Returns the quarter of the input DateTime value. Quarter ranges from 1 to 4.	DateTime	Double
RegexMatch	String	Returns a matched value from the input value for a pattern in a position (zero-based).	String
RegexReplace	String	Returns a string that has been replaced with a string that matches a pattern in the input string.	String
Replace	String	Replaces the part of a string with given value.	String	String
Round	Math	Rounds a double-precision floating-point value to the nearest integer.	Double	Double
Second	DateTime	Returns the second part of the DateTime value.	DateTime	Double
Select	Special	Return the first item in the list where the corresponding predicate is equal to a given value.
Split	String	Returns a specific part of a string split using a separator.	String	String
Sqrt	Math	The square root of the input value.	Double	Double
Substring	String	Returns part of a string.	String	String
Sum	Math	Sum of given values.	Double	Double
TimeDiff	DateTime	Returns the period between two DateTime values.	DateTime, DateTime	TimeSpan
ToLower	String	Converts to lowercase text.	String	String
ToProper	String	Converts to proper case text.	String	String
ToUpper	String	Converts to uppercase text.	String	String
Trim	String	Removes all leading and trailing white spaces.	String	String
TrimLeft	String	Removes the leading white spaces.	String	String
TrimRight	String	Removes the trailing white spaces.	String	String
Truncate	Math	The integral part of the value. In other words, rounds up or down towards zero.	Double	Double
Week	DateTime	Returns the standard week number of the input DateTime value.	DateTime	Double
Year	DateTime	Returns the year part of the input DateTime value.	DateTime	Double

Example of Mapping CI Type

Given the SCCM row for Computer_System_Data.Roles0 has the data:

LM_Workstation, LM_Server, SQLServer, Backup_Domain_Controller, Timesource, Print, NT, Backup_Browser, Master_Browser, DFS

The mapping is defined in pairs, except the last value.

Value	Paired With
LM_Server	Server
Server_NT	Server
SQLServer	Server
LM_Workstation	Workstation
Workstation	If no match, use default value

Field Mapping Example - Configuration Items

The first match of the above left hand value in the mapping pair in Roles0 is saved as the CI.Type.

In this example, the CI.Type is "Server" since there is a match in the Roles0 value for the first value "LM_Server" and hence the value 'Server'.

If role = LM_Workstation, returns Workstation.

If role = SQLServer, returns Server.

If role is not defined or does not exist, returns the default value Workstation.
